Product Details:
|
| Name: | Plasma Cutter Welder Combo | Cutting Material: | Metal Stainless Steel Carbon Steel |
|---|---|---|---|
| Input Voltage: | 380V Three Phase | Duty Cycle: | 100% |
| Logo: | Customized | Cutting Thickness: | 65mm |
| High Light: | 160A Plasma Cutter Welder Combo,160amp Plasma Cutter Welder Combo,160amp Small Cnc Plasma Cutter |
||

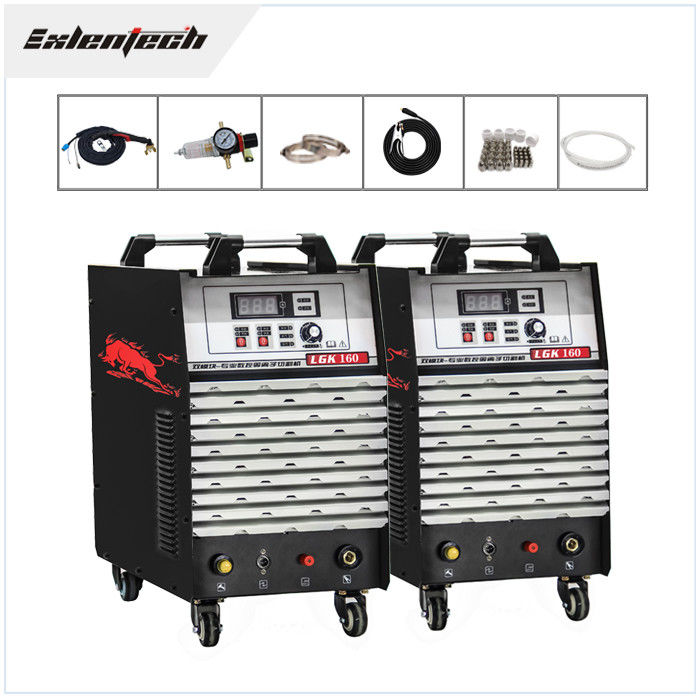

High Duty Cycle Plasma Cutter Welder Combo 160amp Small Cnc Plasma Cutter
Heavy Industrial DC IGBT Technology High Duty Cycle Plasma Cutter CUT-160 Cutting Machine LGK160
Plasma cutter Characteristics:
| Model | CUT-160 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA): | 20 |
| No-load voltage(V): | 269 |
| Output current range.(A): | 20-160 |
| Rated output voltage(V): | 125 |
| Duty cycle (%)(25ºC): | 100 |
| No-load loss(w): | 60 |
| Arc-starting: | HF |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 50 |
| Overall dimension(mm): | 562×303×467 |
| Case protection degree: | IP21S |
| Air compressor displacement(S): | 0.36 |
| Max cutting thickness(mm): | 65 |
FAQ
MOQ:
· If you need OEM service or need to distribute our brand? the quantity will be different accordingly,and different model with different MOQ. Please Contact us for more information.
· If you need small quantity for your own use, and you can accept our brand,small quantity could be acceptable.
Payment:
· TT/ LC/Paypal/Western Union etc.TT payment would be preferred for bulk quantity order: 30% deposit and the balance 70% before the shipment.
Delivery time:
· Sample order or small quantity order,we can delivery within 3 days.
· OEM service or other big order,it takes around 20 days after confirming the advance payment
Samples:
Can we mix different items in one container?
· Yes,you can order different model to mix one container,and even you need some other products,we would like to offer help.
What about the after sales service?
