Product Details:
|
| Name: | MIG Welder | Input Voltage: | 220v Or 380v |
|---|---|---|---|
| Machine Color: | OEM | Logo: | Customized |
| Wire Feeder: | Inbuilt Wire Feeder | Gas: | CO2 |
| Highlight: | 270Amp MIG Inverter Welder,270A MIG Inverter Welder,270Amp Pulse Mig Welding Machine |
||

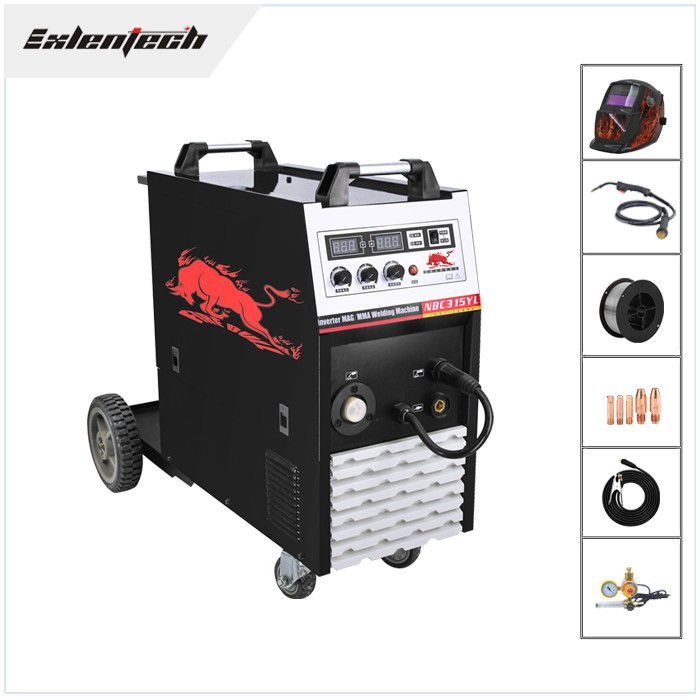

270Amp MIG Inverter Welder Pulse Mig Welding Machine With Trolley
Mig MMA Welding Machine 250 /270/315 IGBT Mig Inverter Welder Industrial Welder With Trolley
MIG welding machine Product Characteristics:
1. Adopt all digital and visual design,autosave welding parameters.
2. Application of leading anti-splash control circuit, small splash, uniform and beautiful shape.
3. MIG/MMA functions.
4. No breakdown and deformation for thin sheet welding at small current 20Amp.
5. Stable welding with thin wires and low current, especially suitable for welding thin plates, the thinnest 0.5mm does not wear
6. Arc hardness adjustment, suitable for different materials and process requirements.
7. Suitable for medium and low carbon steel,low alloy steel and stainless steel welding.
| Model: | MIG-315 |
| Input power Voltage Frequency(V,Hz): | AC220V/380V±15%,50/60 |
| Rated input power capacity(KVA) : | 8.3 |
| Rated output current(A): | 250 |
| Rated output voltage(V): | 26.5 |
| Duty cycle (%): | 60 |
| Output current range.(A): | 50-250 |
| Output voltage range(V): | 16.5-26.5 |
| Insulation class: | F |
| Case protection degree: | IP21S |
| Overall dimension(mm): |
655×295×610 |
| Weight(KG): | 21 |
| Efficiency(%): | 85 |
| Feeding speed(m/min): | 2.5-13 |
| Type of wire feeder: | Build-in |
| Diameter of the wire feeder(mm): | 270 |
| Post-flow time(S): | 1±0.5 |
| Power factor (COSφ): | 0.93 |
| Earth wire(mm2): | 6 |
| Welding thickness(mm): | >0.8 |
| Diameter of welding wire(mm): | 0.8/1.0 |
1. Q: Do you have products in stock?
A:Yes, we have.
A: Yes, we have certificates for different products.
A: Quality is priority, regarding welding&cutting products. Our factory has passed ISO 9001 with annual audit. Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels
A: We offer different warranty time to different products. Please contact us for detailed warranty terms. For quality problem, we always promise to send free accessories and send together with next order.
During the manufacturing and before shipment, we will go to the workshop or the co-operated factories to check, to make sure that everything is fine. We work just as your own office in China! We are your eyes.
Benefit you get:
A. Stable quality ——Coming from good materials and production B. Competitive price——Not cheapest but the competitive C. Good service——Satisfactory service before and after sale
1. We provide quality assurance service for up to 12 months wanrranty. The effective time of service is calculated form the date of purchase or Boarding date of BL.
2. For each order, we will provide 1% free PCB or key components for your maintenance.
3. If you encounter problems which can't be fixed by yourself, we can provide technical support through video communication.
4. If bad quality problems occur, our salesmen and technicians will personally go to your company to inspect and repair, and offer solutions.
