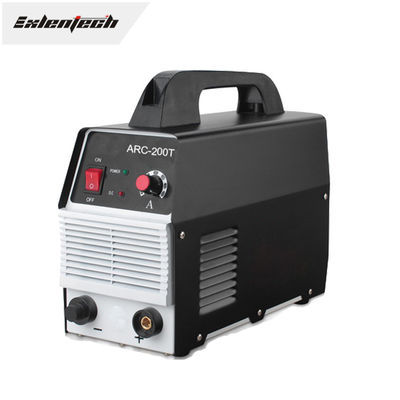

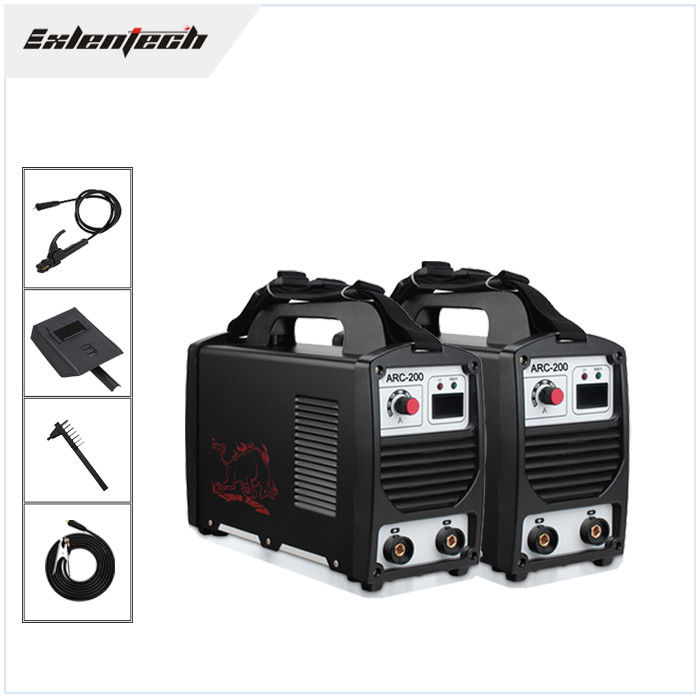

Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle

Certification
China Shenzhen Exlentech Welding Equipments Co., Ltd. certification
China Shenzhen Exlentech Welding Equipments Co., Ltd. certification
I'm Online Chat Now

Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle

Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle
Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle

Large Image :  Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle

Product Details:
Place of Origin: CHINA
Brand Name: EXLENTECH
Certification: UL,CE,ISO,CCC
Model Number: ARC-200
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD55-USD105/PC
Packaging Details: Carton: 455×270×345mm
Delivery Time: Around 30days
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs per month

Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle

Description
Input Voltage: 220V±15% Single Phase OEM: Ok
Component: Mosfet Technology Color: As Required
Brand: Follow Your Brand Output Current: 200Amps
High Light:

220V 200A Single Phase Welder

,

7KVA Single Phase Welder

,

7KVA single phase mig welder

Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle

Inverter DC Mosfet Welding Machine ARC-200 single phase 220V

ARC welding machine product characteristics:

* Reliable quality,steady performance, automatic compensation for voltage fluctuation.

* High duty cycle,support long time welding,with the function of over heat,overload protection.

* Stable arc,esthetic welding seam,deep welding pool,little spatter,with function of power force compensation.

* Support cellulose electrode welding.

* Arc start easily,with the function of arc-starting current independent control.



Model: ARC-200
Input power Voltage Frequency(V,Hz): AC220(single phase)±15%,50/60
Rated input power capacity(KVA) : 7
No-load voltage(v): 62
Output current range.(A): 20-200
Rated output voltage(V): 28
Duty cycle (%):(25ºC) 60
No-load loss(w): 40
Efficiency(%): 85
Power factor (COSφ): 0.93
Insulation class: F
Weight(KG): 9
Overall dimension(mm): 365×138×238
Case protection degree: IP21S
Suitable diameter of rod(mm): 1.6-3.2






Mosfet 220V Single Phase Welder ARC 200A Inverter DC High Duty Cycle 0

Why choose us?

1.We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.

2.We use all new components,IGBT tube, diode,capacitor and so on imported components.

3.We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.

4.We provide Warranty period of 1 to 2 years for all our items.



MOQ:

 The different products with different MOQ. Contact us with more details.

 If with stock, 1-5 sets could be acceptable as well.



Payment:

 TT payment would be preferred: usually 30% deposit and the balance before shipment



Delivery time:

 Around 30 days after confirming the payment



Sample Issue:

 Once price and order confirmed, we will be glad to send you the required samples for reference.



First time to use this kind of machine

 There is an English manual or guide video that show you how to use machine.

 If you still have any question, please contact us by e-mail /phone / online service.



If any problem with machine after receiving

24 hours to support by E-mail/calling

Free parts could be sent to you in machine warranty period.
