Product Details:
|
| Name: | Inverter AC/DC TIG Welder | Input Voltage: | Single Phase 220V±15% |
|---|---|---|---|
| OEM: | Yes | Technology: | Mosfet Technology |
| Color: | Customlized | Suitable Metal: | Aluminium,Stainless Steel,carbon Steel |
| High Light: | 200P MMA AC DC Welder,200P Inverter AC DC Welder,200P dc arc welder |
||

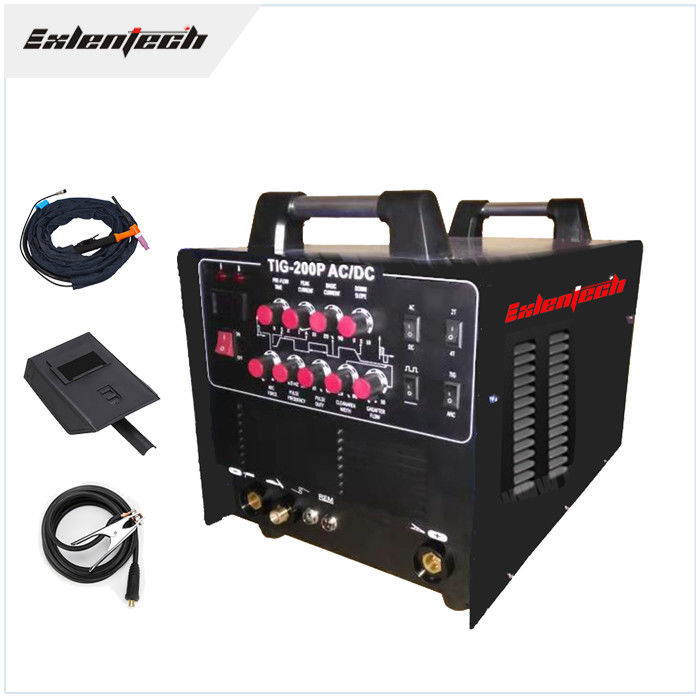

Inverter TIG 200P MMA Pulse AC DC Welder Single Phase 220V OEM
Inverter AC/DC TIG Welder TIG-200P With MMA Pulse Function Aluminium Welding And Most Kinds Of Metal Are Available
AC/DC TIG welding Machine characteristics:
* Machine with 2 function,TIG and MMA,and suitable for Aluminium welding.
* Remote foot control,adjustable current.
* DC welding function:can be used to weld stainless steel,alloyed steel,carbon steel,copper etc nonferrous metal.AC welding function:can be used to weld aluminium,aluminium alloy etc.
* DC argon arc welding, AC argon arc welding function in one machine,low noise,easy to operate.
| Model | TIG-200P AC/DC |
| Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
| Rated input power capacity(KVA): | 4.5 |
| No-load voltage(V): | 56 |
| Output current range.(A): | 20-200 |
| Rated output voltage(V): | 18 |
| Duty cycle (%): | 60 |
| No-load loss(W): | 40 |
| Arc-starting: | HF |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 20 |
| Overall dimension(mm): | 498×328×302 |
| Case protection degree: | IP21S |
| Pre-flow time(s): | 0-2 |
| Duty ratio(%): | 20-8 |
| Current down-slope time(s): | 0-5 |
| Post-flow time(s): | 2-10 |
| Remote interface: | with |
| AC welding thickness(mm): | 0.5-5 |
MOQ:
· If you need OEM service or need to distribute our brand? the quantity will be different accordingly,and different model with different MOQ. Please Contact us for more information.
· If you need small quantity for your own use, and you can accept our brand,small quantity could be acceptable.
Payment:
· TT/ LC/Paypal/Western Union etc.TT payment would be preferred for bulk quantity order: 30% deposit and the balance 70% before the shipment.
Delivery time:
· Sample order or small quantity order,we can delivery within 3 days.
· OEM service or other big order,it takes around 20 days after confirming the advance payment
Samples:
Can we mix different items in one container?
· Yes,you can order different model to mix one container,and even you need some other products,we would like to offer help.
What about the after sales service?
Contact Person: kalvin
Tel: 18607555194
