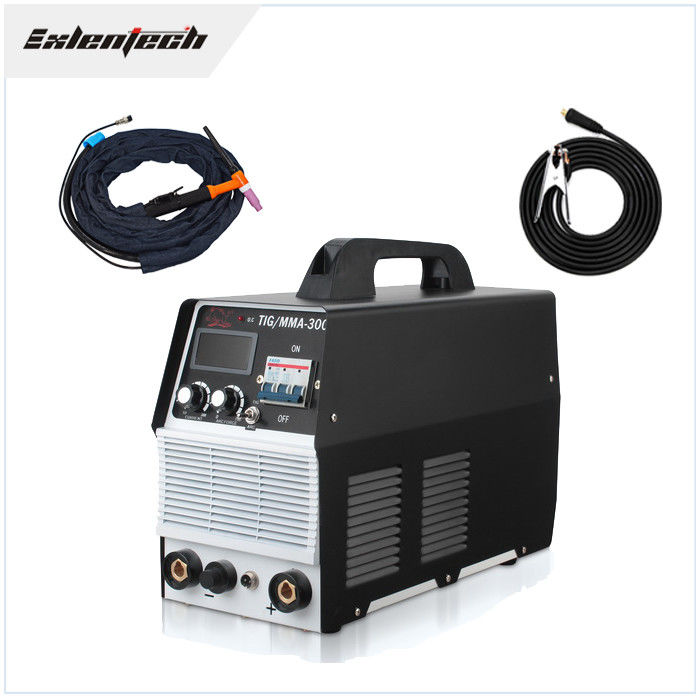

Product Details:
|
| Product Name: | Inverter TIG/MMA Welding Machine | Input Voltage:: | Three Phase 380V±15% |
|---|---|---|---|
| OEM:: | Yes | Color:: | Customlized |
| Technology:: | Inverter Mosfet Technology | Frequency: | 50/60Hz |
| High Light: | 50Hz 380V TIG Welding Machine,ODM 60Hz TIG Welding Machine,60Hz 380V dc inverter welder |
||
* DC TIG/MMA function,one machine serves dualpurpose,excellent quality and reasonable price.
* High frequency arc starting,make it very easy to operate.
* The MMA arc welding have special arc force adjusting function,it's very convenient and practical.
* With the function of current down slope time,prevent the arc welding pool.
* Apply to water cooling syetem and accessaries.
* Can be used to weld stainless steel,carbon steel,alloyed steel,copper,titanium etc.
* Apply to acid welding rod ,alkaline welding rod etc.
| Model: | TIG/ARC-300 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 8.3 |
| No-load voltage(v): | 54 |
| Output current range.(A): | 10-300 |
| Rated output voltage(V): | 22 |
| Duty cycle (%)(25ºC): | 60 |
| No-load loss(w): | 60 |
| Thrust force adjustment range: | 10-250 |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 23 |
| Overall dimension(mm): | 500×263×421 |
| Case protection degree: | IP21S |
| Welding thickness(mm): | 0.5-12 |
| Current down-slope time(s): | 0-5 |
FAQ
MOQ:
· The different products with different MOQ. Contact us with more details.
· If with stock, 1-5 sets could be acceptable as well.
Payment:
· TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
· Around 30 days after confirming the payment
Sample Issue
First time to use this kind of machine
· There is an English manual or guide video that show you how to use machine.
· If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
Do you have any concerns about the after-sales service of the welding machines you buy?
We have a complete set of after-sales service system to ensure that you have no worries about purchasing.
1. We provide quality assurance service for up to 12 months wanrranty. The effective time of service is calculated form the date of purchase or Boarding date of BL.
2. For each order, we will provide 1% free PCB or key components for your maintenance.
3. If you encounter problems which can't be fixed by yourself, we can provide technical support through video communication.
4. If bad quality problems occur, our salesmen and technicians will personally go to your company to inspect and repair, and offer solutions.
