220V TIG MMA AC DC Welder

220V TIG MMA AC DC Welder
220V TIG MMA AC DC Welder

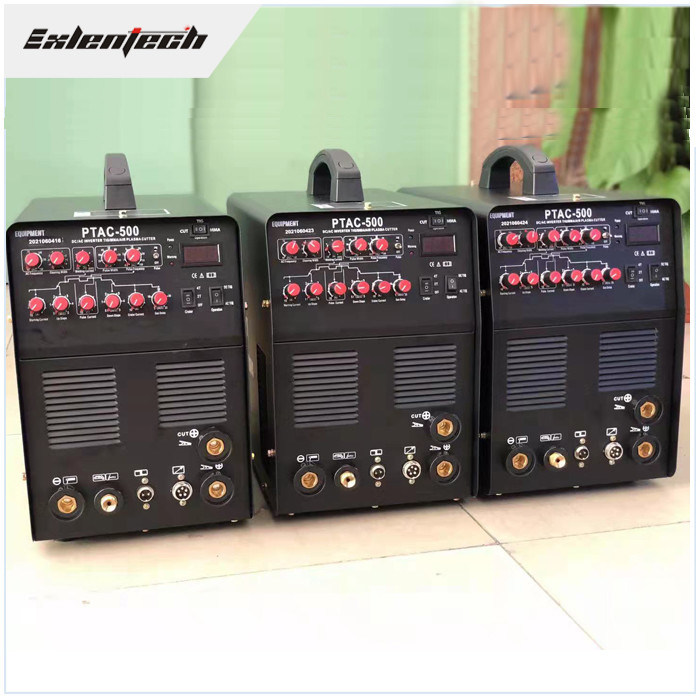

Large Image :  220V TIG MMA AC DC Welder

Product Details:
Place of Origin: CHINA
Certification: CE,CCC
Model Number: PTAC-500
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD390-USD550/PC
Packaging Details: Carton: 498×328×302mm
Delivery Time: Small quantity:3 days; OEM:30days
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 3000pcs per month

220V TIG MMA AC DC Welder

Features: TIG/MMA/PLASMA CUTTER Product Name: Multifunctional Welder
Model: PTAC-500 Suitable Metal: All Kinds Of Metal
Voltage: 220V Warranty: 12 Months
High Light:

220V MMA AC DC Welder


220V TIG AC DC Welder


220V MMA Welder

220V TIG MMA AC DC Welder


Inverter Welder With Cutter TIG AC DC MMA ARC Welder One Machine Can Weld All Kinds Of Metal


Multi- functional welding machine features:

1. Cutting function,TIG fnction and MMA function and it can do Aluminium welding.

2. Optional: Remote control, foot control.

3. DC welding function sutiable for welding: stainless steel,alloyed steel,carbon steel,copper,etc.

4. AC welding function sutiable for welding:aluminium,aluminium alloy etc.

Model PTAC-500
Input power Voltage Frequency(V,Hz): AC220(single phase)±15%,50/60
Rated input power capacity(KVA): 4.5
No-load voltage(V): 56
Output current range.(A): 20-200
Rated output voltage(V): 18
Duty cycle (%): 60
No-load loss(W): 40
Arc-starting: HF
Efficiency(%): 85
Power factor (COSφ): 0.93
Insulation class: F
Weight(KG): 20
Overall dimension(mm): 498×328×302
Case protection degree: IP21S
Pre-flow time(s): 0-2
Duty ratio(%): 20-8
Current down-slope time(s): 0-5
Post-flow time(s): 2-10
Remote interface: with
Suitable rod 2.5/3.2mm
Cutting thickness 15mm
AC welding thickness(mm): 0.5-5


220V TIG MMA AC DC Welder 0


· If you need OEM service or need to distribute our brand? the quantity will be different accordingly,and different model with different MOQ. Please Contact us for more information.

· If you need small quantity for your own use, and you can accept our brand,small quantity could be acceptable.



· TT/ LC/Paypal/Western Union etc.TT payment would be preferred for bulk quantity order: 30% deposit and the balance 70% before the shipment.

Delivery time:

· Sample order or small quantity order,we can delivery within 3 days.

· OEM service or other big order,it takes around 20 days after confirming the advance payment


  • Yes,Sample order are accepted,The samples will be charged reasonably according to the negotiation between us.

Can we mix different items in one container?

· Yes,you can order different model to mix one container,and even you need some other products,we would like to offer help.

What about the after sales service?

  • 12 months guarantee time will be provided. The effective time calculated from the date of BL
  • 1% to 2% free spare parts(PCB or other easy-damage components) to you for your maintenance.
  • If need any spares urgently,we will send by Courier or by air within machine warranty period.
  • If you meet any problem which can't be fixed by yourself, we will provide technical support through video.
  • If any other urgent problem happen, our salesmen and technicians will go to your company to inspect and repair, and offer solutions.

Why choose us?

  • We are welding machine LISTED COMPANY MANUFACTURER,we have strong team to make sure that we can offer better price and after-sale service and short delivery time.
  • More than 40 engineers team to develop new products and guarantee the quality.
  • We use all fresh and good quality components,IGBT, diode,capacitor,Fan,and transformers, and 100% QC inspection before shipping.
  • SMT technology was adopted to decrease the failure rate and it is convenient to repair and reduce the cost of repairing,just need to replace the problem pcb board.
  • 1 to 2 years warranty time will be provided for all of our machines.
