Product Details:
|
| Name: | MIG/MAG Welding Machine | Input Voltage: | 380v / 220V |
|---|---|---|---|
| Current: | 250A/300A/315A | Wire Feeder: | Inbuilt Wire Feeder |
| Duty Cycle: | 60% | Guaranty Time: | 1 Year |
| Highlight: | 380V MAG Welding Machine,ODM MAG Welding Machine,380V MAG welder |
||

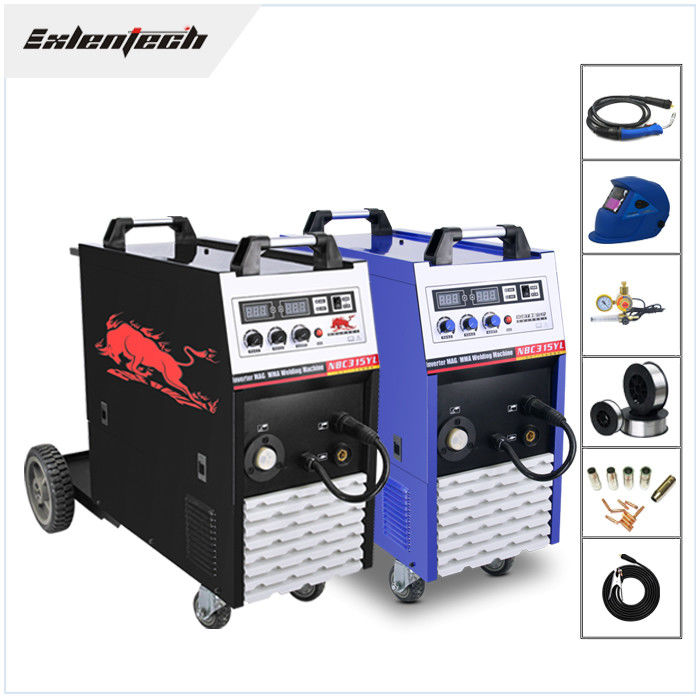

Dual Voltage 220V 380V MAG Welding Machine
MIG 315 Dual Voltage 220V 380V MMA MIG MAG Welders With Built-In Wire Feeder
MIG MAG welding machine Product Characteristics:
| Model: | MIG-315 |
| Input power Voltage Frequency(V,Hz): | AC220V/380V±15%,50/60 |
| Rated input power capacity(KVA) : | 8.3 |
| Rated output current(A): | 250 |
| Rated output voltage(V): | 26.5 |
| Duty cycle (%): | 60 |
| Output current range.(A): | 50-250 |
| Output voltage range(V): | 16.5-26.5 |
| Insulation class: | F |
| Case protection degree: | IP21S |
| Overall dimension(mm): |
655×295×610 |
| Weight(KG): | 21 |
| Efficiency(%): | 85 |
| Feeding speed(m/min): | 2.5-13 |
| Type of wire feeder: | Build-in |
| Diameter of the wire feeder(mm): | 270 |
| Post-flow time(S): | 1±0.5 |
| Power factor (COSφ): | 0.93 |
| Earth wire(mm2): | 6 |
| Welding thickness(mm): | >0.8 |
| Diameter of welding wire(mm): | 0.8/1.0 |
1. Q: Do you have products in stock?
A:Yes, we have.
A: Yes, we have certificates for different products.
A: Quality is priority, regarding welding&cutting products. Our factory has passed ISO 9001 with annual audit. Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels
A: We offer different warranty time to different products. Please contact us for detailed warranty terms. For quality problem, we always promise to send free accessories and send together with next order.
During the manufacturing and before shipment, we will go to the workshop or the co-operated factories to check, to make sure that everything is fine. We work just as your own office in China! We are your eyes.
Benefit you get:
A. Stable quality ——Coming from good materials and production B. Competitive price——Not cheapest but the competitive C. Good service——Satisfactory service before and after sale
