Product Details:
|
| Name: | AC/DC TIG Welder Aluminium Welding Machine | Input Voltage: | Single Phase 220V±15% |
|---|---|---|---|
| OEM: | OK | Technology: | Mosfet Technology |
| Suitable Metal: | Aluminium,Stainless Steel,carbon Steel | Color: | As You Required |
| High Light: | 220V 200Amp Aluminium Welding Machine,ODM Aluminium Welding Machine,220V 200amp aluminium mig welder |
||

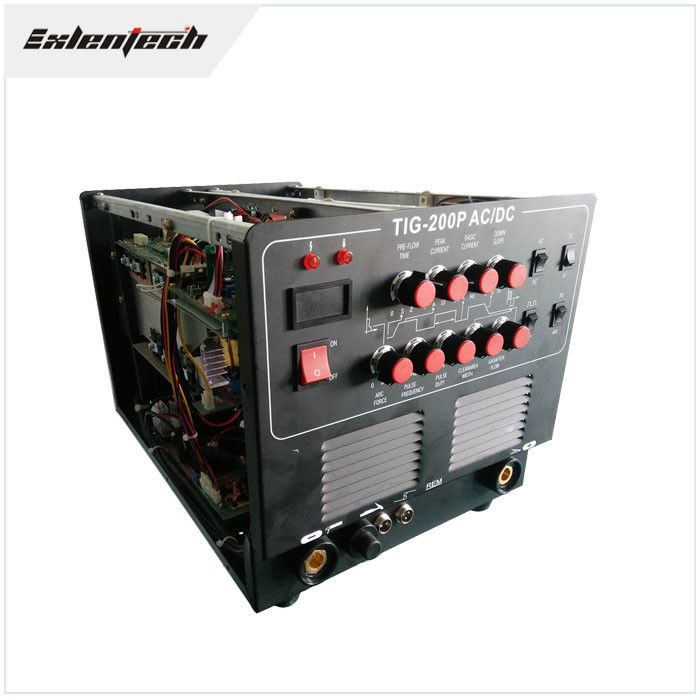

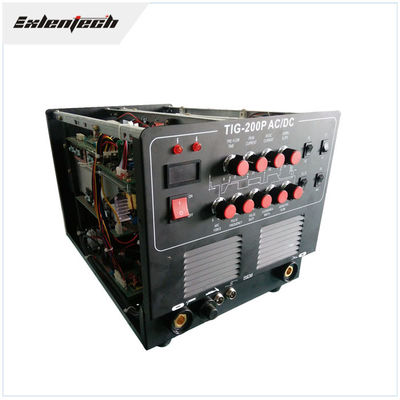

TIG AC DC Inverter Aluminium Welding Machine 200 Amp Remote Foot Control
Aluminium Welding Machine TIG-200P AC DC Inverter TIG Welder Suitable For Most Kinds Of Metal Welding
AC/DC TIG welding Machine Product Characteristics:
* Double function,TIG and MMA,especially suitable for Aluminium welding.
* Remote foot control,adjustable current.
* DC welding function:can be used to weld stainless steel,alloyed steel,carbon steel,copper etc nonferrous metal.AC welding function:can be used to weld aluminium,aluminium alloy etc.
* DC argon arc welding, AC argon arc welding function in one machine,low noise.
| Model | TIG-200P AC/DC |
| Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
| Rated input power capacity(KVA): | 4.5 |
| No-load voltage(V): | 56 |
| Output current range.(A): | 20-200 |
| Rated output voltage(V): | 18 |
| Duty cycle (%): | 60 |
| No-load loss(W): | 40 |
| Arc-starting: | HF |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 20 |
| Overall dimension(mm): | 498×328×302 |
| Case protection degree: | IP21S |
| Pre-flow time(s): | 0-2 |
| Duty ratio(%): | 20-8 |
| Current down-slope time(s): | 0-5 |
| Post-flow time(s): | 2-10 |
| Remote interface: | with |
| AC welding thickness(mm): | 0.5-5 |
Do you have any concerns about the after-sales service of the welding machines you buy?
We have a complete set of after-sales service system to ensure that you have no worries about purchasing.
1. We provide quality assurance service for up to 12 months wanrranty. The effective time of service is calculated form the date of purchase or Boarding date of BL.
2. For each order, we will provide 1% free PCB or key components for your maintenance.
3. If you encounter problems which can't be fixed by yourself, we can provide technical support through video communication.
4. If bad quality problems occur, our salesmen and technicians will personally go to your company to inspect and repair, and offer solutions.
