Product Details:
|
| Name: | Inverter AC/DC TIG Welder | Input Voltage: | Three Phase 380V±15% |
|---|---|---|---|
| Technology: | Mosfet Technology | OEM: | OK |
| Color: | As You Required | Suitable Metal: | Aluminium,Stainless Steel,carbon Steel |
| High Light: | 380V Mosfet AC DC Welder,380V 315A AC DC Welder,315Amps ac dc welding machine |
||

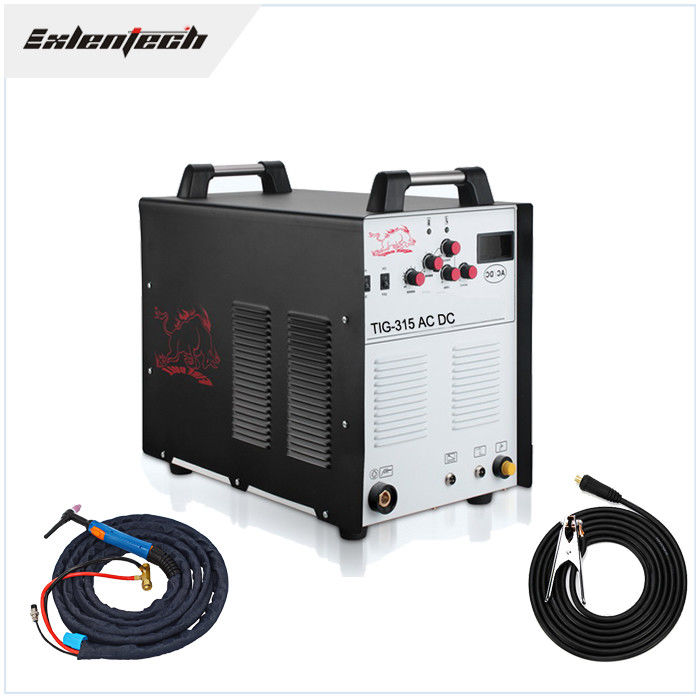

Three Phase 380V 315A Mosfet AC DC Welder TIG For Carbon Steel
Inverter 380V 315A Mosfet Technology TIG Machine TIG315PAC DC TIG Welder
AC DC TIG welder Product Characteristics:
1) AC DC with pulse function inverter welding TIG machine, suitable for welding of various metallic materials such as aluminum, aluminum alloy, carbon steel, stainless steel, copper, titanium.
2) Concentrated heat, easy to fill in the wire, especially suitable for wire welding in bicycle industry.
3) Supper strong oxidization film removal capability, continuous and adjustable Removal width, and good weld surface.
4) Built-in alarming and protective circuits are provided to prevent over-current, over-heat, over-voltage and under-voltage, and ensure safely operation.
5) High duty cycle, continuous operation without interruption at large current is available.
6) Quality square wave power supply, stable arc, HF arc stabilization not necessary.
.
| Model | WSME-315 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 16.2 |
| No-load voltage(V): | 75±5 |
| Output current range.(A): | 10-315 |
| Duty cycle (%):(25℃): | 60 |
| Arc-starting: | HF |
| Efficiency(%): | 92 |
| Power factor (COSφ): | 0.89 |
| Insulation class: | F |
| Weight(KG): | 38 |
| Overall dimension(mm): | 560×364×430 |
| Case protection degree: | IP21S |
| Post-flow time(s): | 2-10 |
| Base current(A): | 10-315 |
| Duty ratio(%): | 10-90 |
