Product Details:
|
| Voltage(V): | Single Phase 220V | Name: | Hand Tool Welding Machine |
|---|---|---|---|
| Current(A): | 120A/160A | Logo: | OEM |
| N.W: | 1.8 KG | Duty Cycle: | 30% |
| High Light: | OEM MMA 160 Inverter Welder,ODM MMA 160 Inverter Welder,ODM 120A inverter welder |
||

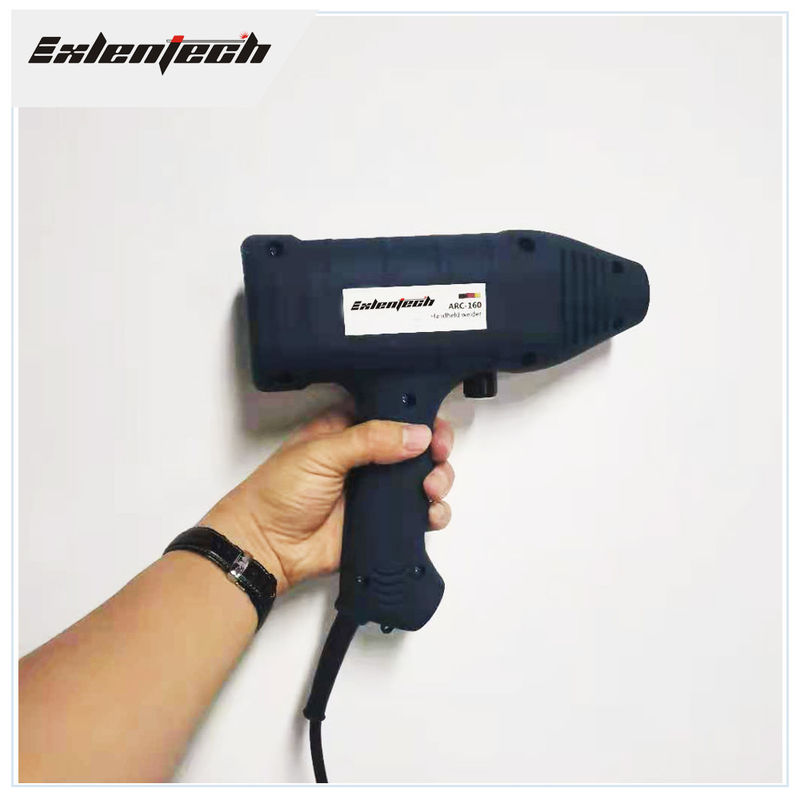

1. Mini mma welder ,lightweight 1.6KG and portable,easy to carry.
| Model: | ARC-160 |
| Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 7 |
| No-load voltage(v): | 62 |
| Output current range.(A): | 20-160 |
| Rated output voltage(V): | 28 |
| Duty cycle (%)(25ºC): | 35 |
| No-load loss(w): | 40 |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 5 |
| Overall dimension(mm): | 235×75×235 |
| Case protection degree: | IP21S |
| Suitable diameter of rod(mm): | 1.6-2.5 |
FAQ
Q: Do you have products in stock?
A:Yes, we have.
A: Yes, we have certificates for different products.
A: Quality is priority, regarding welding&cutting products. Our factory has passed ISO 9001 with annual audit. Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels
A: We offer different warranty time to different products. Please contact us for detailed warranty terms. For quality problem, we always promise to send free accessories and send together with next order.
During the manufacturing and before shipment, we will go to the workshop or the co-operated factories to check, to make sure that everything is fine. We work just as your own office in China! We are your eyes.
Benefit you get:
A. Stable quality ——Coming from good materials and production B. Competitive price——Not cheapest but the competitive C. Good service——Satisfactory service before and after sale.
