Product Details:
|
| Name: | MIG Inverter Welder | Input Voltage: | 220v Or 380v |
|---|---|---|---|
| Output Current: | 250/300A | Wire Feeder: | Inbuilt Wire Feeder |
| Duty Cycle: | 60% | Machine Color: | OEM |
| High Light: | 300A 380v MIG Inverter Welder,8.3KVA IGBT MIG Inverter Welder,300A 380v mig welding machine |
||

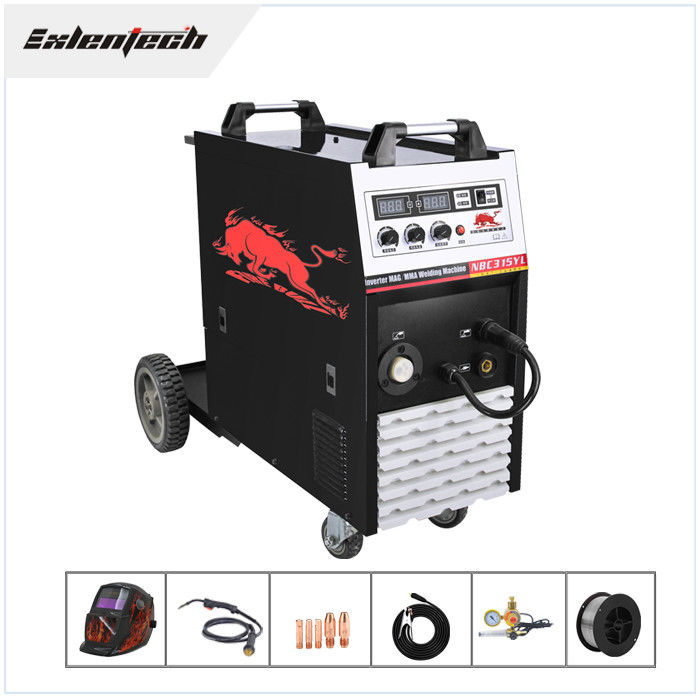

Anti Splash IGBT 300A MIG Inverter Welder For 17kg Wire Roll
Double Functions Mig MMA Inverter Welder Machine MIG 300 IGBT Suitable 17kg Wire Roll
MIG welding machine specifications:
1. Using single-tube IGBT high-frequency inverter technology, high output power, stable and reliable.
2. Application of leading anti-splash control circuit, small splash, uniform and beautiful shape
3. MIG/MMA functions.
4. No breakdown and deformation for thin sheet welding at small current 20Amp.
5. 0.8 Excellent spot welding performance of thin plate with welding wire
6. Portable integrated wire feeder design.
7. Suitable for medium and low carbon steel,low alloy steel and stainless steel welding.
| Model: | MIG-315 |
| Input power Voltage Frequency(V,Hz): | AC220V/380V±15%,50/60 |
| Rated input power capacity(KVA) : | 8.3 |
| Rated output current(A): | 250 |
| Rated output voltage(V): | 26.5 |
| Duty cycle (%): | 60 |
| Output current range.(A): | 50-250 |
| Output voltage range(V): | 16.5-26.5 |
| Insulation class: | F |
| Case protection degree: | IP21S |
| Overall dimension(mm): |
655×295×610 |
| Weight(KG): | 21 |
| Efficiency(%): | 85 |
| Feeding speed(m/min): | 2.5-13 |
| Type of wire feeder: | Build-in |
| Diameter of the wire feeder(mm): | 270 |
| Post-flow time(S): | 1±0.5 |
| Power factor (COSφ): | 0.93 |
| Earth wire(mm2): | 6 |
| Welding thickness(mm): | >0.8 |
| Diameter of welding wire(mm): | 0.8/1.0 |
