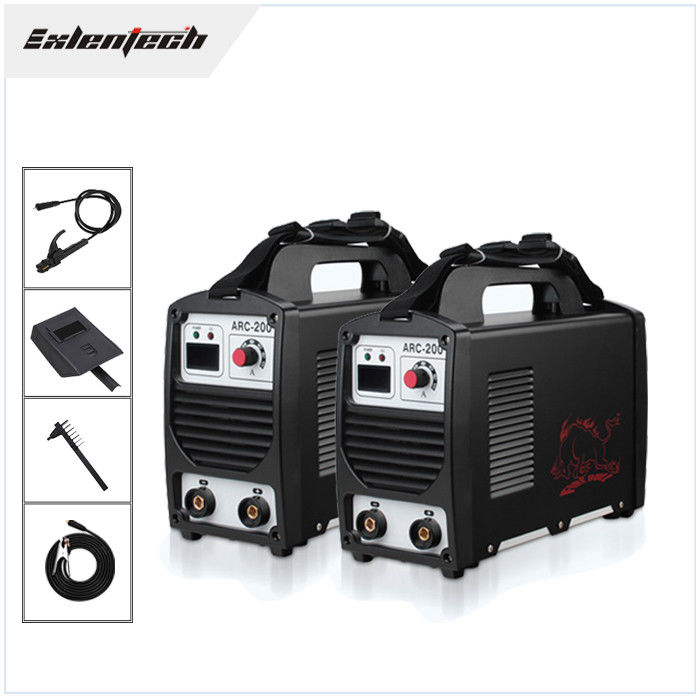

Product Details:
|
| Product Name: | Mosfet Welding Machine | Voltage: | Single Phase 220V |
|---|---|---|---|
| Duty Cycle: | 60% | Brand: | Customlized |
| Real Current: | 160 Amps | Cooling Way: | Air Cooling |
| High Light: | 220V 200A Inverter Welder,ODM 200A Inverter Welder,7KVA single phase welder |
||
1. Traditional Mosfet inverter technology, low consumption and high output.
2. Digital control improves the reliability.
3. High speed fan brings effective dissipation and high duty cycle.
4. Over-current, over-voltage and over-heat protection.
5. High no load voltage, smooth and stable welding performance with minimal spatter.
6. All kinds of acid, alkalic electrodes are applicable.
7. Wide range of power grid adaptation.
| Model: | ARC-200 |
| Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 7 |
| No-load voltage(v): | 62 |
| Output current range.(A): | 20-200 |
| Rated output voltage(V): | 28 |
| Duty cycle (%):(25ºC) | 60 |
| No-load loss(w): | 40 |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 9 |
| Overall dimension(mm): | 365×138×238 |
| Case protection degree: | IP21S |
| Suitable diameter of rod(mm): | 1.6-3.2 |
FAQ
FAQ
MOQ:
· If you need OEM service or need to distribute our brand? the quantity will be different accordingly,and different model with different MOQ. Please Contact us for more information.
· If you need small quantity for your own use, and you can accept our brand,small quantity could be acceptable.
Payment:
· TT/ LC/Paypal/Western Union etc.TT payment would be preferred for bulk quantity order: 30% deposit and the balance 70% before the shipment.
Delivery time:
· Sample order or small quantity order,we can delivery within 3 days.
· OEM service or other big order,it takes around 20 days after confirming the advance payment
Samples:
Can we mix different items in one container?
· Yes,you can order different model to mix one container,and even you need some other products,we would like to offer help.
What about the after sales service?
Contact Person: kalvin
Tel: 18607555194
