Product Details:
|
| Voltage: | 110V Or 220V | Frequency: | 50/60Hz |
|---|---|---|---|
| Output Current: | 120/140/160A | Brand: | Follow Your Brand |
| N.W: | 4 Kg | Duty Cycle: | 60% |
| High Light: | 7KVA Arc 200 Igbt Inverter Welder,7KVA 200A IGBT Mma Welding Machine,7KVA igbt mma 200 inverter |
||
1. The welder is a breakthrough machine, utilizing the efficiency and reliability of Multiple IGBT inverters allowing a huge increase in duty cycle, it means you can push this powerhouse to the limit and beyond!
2. Incorporating the latest IGBT Inverter Technology, it is suitable for welding mild steel, copper, iron, brass, alloy, carbon steel ,and more.

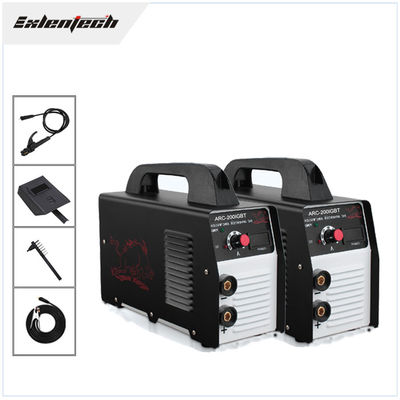

| Model: | ARC-200 |
| Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 7 |
| No-load voltage(v): | 62 |
| Output current range.(A): | 20-200 |
| Rated output voltage(V): | 28 |
| Duty cycle (%)(25ºC): | 35 |
| No-load loss(w): | 40 |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 5 |
| Overall dimension(mm): | 315×115×200 |
| Case protection degree: | IP21S |
| Suitable diameter of rod(mm): | 1.6-3.2 |
1. Q: Are you a factory or trading company?
A: We're a group company including 2 factories and 1 trading company. To avoide competition and factories’ private and confidential purpose.
2.Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3.Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q. Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A:Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times without jet lag.
6.Q: WHY CHOOSE US?
1.100% local people,more then 5years experience on assambling.
2.Trial order 100% inspection on finished product,follow orders by 10-20% quality inspection on finished product.
3.Competitive price under high quality warranty.
7.Q: WHAT ABOUT OEM/ODM AND DESIGN OF THE PRODUCT?
We have more then 30people for researching new technology on welding machines,helping customers to do ODM/OEM, and can help customer to design and modify the product.
8.Q: Can you supply the sample?Q:Can you supply the sample?
We can supply the sample to you,but we should charge the sample fee.The sample fee can be returned after your order comfirmed.
What about the after sales service?
