Product Details:
|

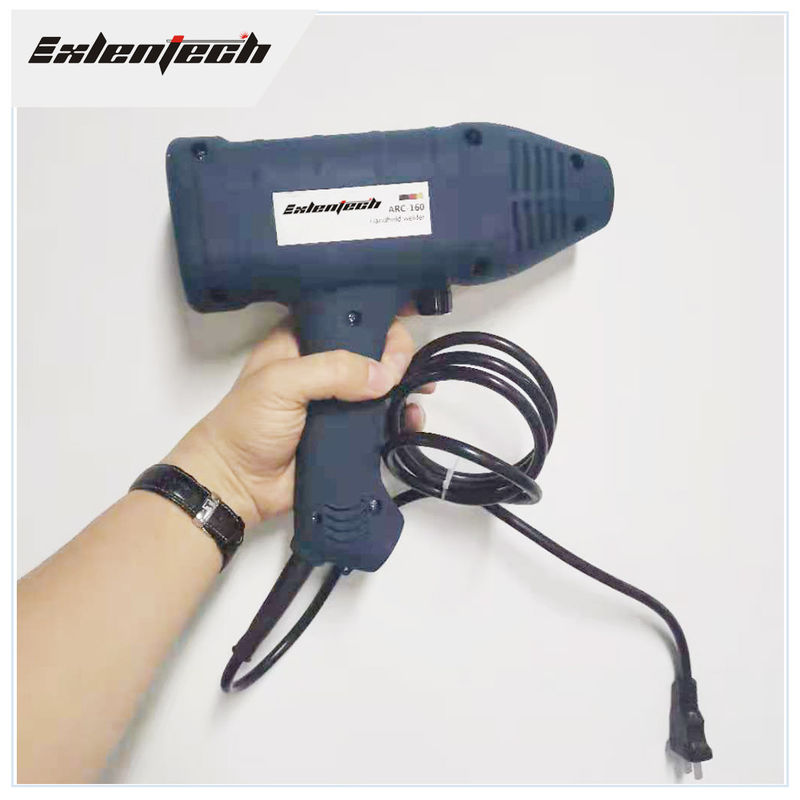

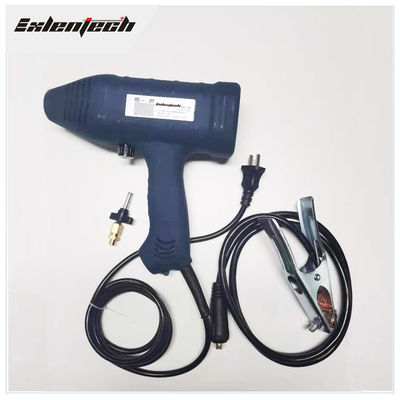

| Name: | Hand Hold Welder | Voltage(V): | Single Phase 220V |
|---|---|---|---|
| Current(A): | 120A | Warranty: | 12 Month |
| N.W: | 1.8 KGS | Duty Cycle: | 30% |
| High Light: | 120Amps Inverter Stick Welder,120Amp Arc Inverter Stick Welder,120Amps handheld welding machine |
||
1. Smart hand-held design patent,Compact size, light weight.
2. Press chuck for quick replacement of electrode.
3. Integration of machine and welding cable. Free welding anytime, anywhere.
4. Button control switch, effectively prevent welding errors.
5. Inside anti-stick,Easy to carry.
| Model: | ARC-160 |
| Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 7 |
| No-load voltage(v): | 62 |
| Output current range.(A): | 20-160 |
| Rated output voltage(V): | 28 |
| Duty cycle (%)(25ºC): | 35 |
| No-load loss(w): | 40 |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 1.8 |
| Overall dimension(mm): | 235×75×235 |
| Case protection degree: | IP21S |
| Suitable diameter of rod(mm): | 1.6-2.5 |
1. MOQ:
Generally if you choose the different products, our minimum order qty. also will be different and if with stock, 1-5 sets can be acceptable as well.
2. Payment:
Actually, TT payment would be preferred: Normally we choose T/T, usually is 30% deposit and the balance before shipment L/C, Western Union and paypal is acceptable.
3. Delivery time:
For OEM service,The goods need around 30 days to be made after receive deposit.
4.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for reference.
5. Why choose us?
a. We are China Leading manufacturer. We are confident that with our experience in welding machine and air plasma cutter etc. Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. For large order, engineer can be sent to your country for on-site maintenance instructions.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on trade manager, anyway we will try our best to help with the inquiry.
6. First time to use this kind of machine
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail /phone /trade manager online service.
7. If machine have any problem after received
Free parts can be sent to you in machine warranty period.
