Product Details:
|
| Name: | Mosfet Tig Arc Welder | Voltage: | Single Phase 220±15% V |
|---|---|---|---|
| Frequancy: | 50/60Hz | Actual Current: | 200Amps |
| Warranty: | 12 Months | Suitable Metal: | S.S And Carbon Steel Etc. |
| High Light: | Mosfet Tig Arc Welder,8.3KVA Tig Arc Welder,8.3KVA mosfet welder |
||

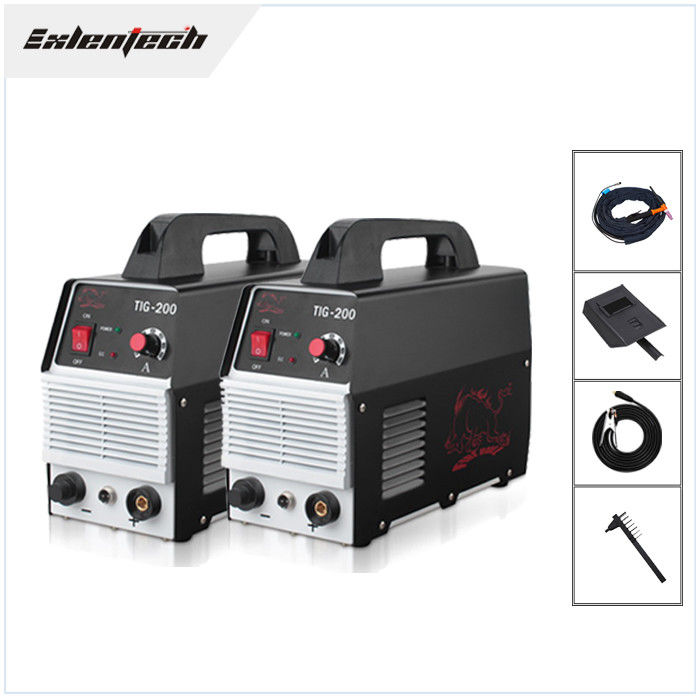

Single Phase Mosfet Tig Arc Welder 200Amps 50Hz High Frequency
Mosfet Tig Welding Machine Double Function With TIG And MMA Suit For Thin S.S Plate Welding
Inverter TIG welding machine Product Characteristics:
* DC TIG/MMA function,one machine serves dualpurpose,excellent quality and reasonable price.
* The MMA arc welding have special arc force adjusting function,it's very convenient and practical.
* With the function of current down slope time,prevent the arc welding pool.
* Apply to water cooling syetem and accessaries.
* Can be used to weld stainless steel,carbon steel,alloyed steel,copper,titanium etc.
* High frequency arc starting,make it very easy to operate.
|
Model: |
TIG/ARC-200 |
|
Input power Voltage Frequency(V,Hz): |
AC220(Single phase)±15%,50/60 |
|
Rated input power capacity(KVA) : |
8.3 |
|
No-load voltage(v): |
53 |
|
Output current range.(A): |
10-200 |
|
Rated output voltage(V): |
25 |
|
Duty cycle (%)(25ºC): |
60 |
|
No-load loss(w): |
60 |
|
Thrust force adjustment range: |
10-200 |
|
Efficiency(%): |
85 |
|
Power factor (COSφ): |
0.93 |
|
Insulation class: |
F |
|
Weight(KG): |
23 |
|
Overall dimension(mm):370 |
370×153×272 |
|
Case protection degree: |
IP21S |
|
Welding thickness(mm): |
0.5-8 |
|
Current down-slope time(s): |
0-5 |
FAQ
Q1: Are you original manufacture?
A: Yes, we are the one of the biggest manufacturer, our main products are inverter MMA welding machine, inverter MIG welding machine, inverter HF TIG welding machine, submerged arc welding machine(SAW) machine, plasma cutter cutting machine, air compressor cutter cutting.
Q2. How could I know if this machine is suitable for me?
A: Before ordering, the details of the machine will be sent for your reference, and we will do the test report for each order according to your details requirement.
Q3. How long is the warranty time for your products?
A: 1 year warranty, 12H technology answering, 24H technology solution, and technology training
Q4.I haven't done business with you guys before, how can i trust your company?
A: You can pay by alibaba insurance to make sure your money is safety; and you can visit our factory, as we was built on 2006, we has rich experience of intelligent welding factory solutions. we had established business relationship with many OEM brands. Quality is reliable.
Q5: How about your service?
A: 365x24 Year-round service
we have profressional overseas service center available after you purchase our goods if have any issue.We are committed to year-roung 24-hour service during holidays,in line policy of always providing “a response within 15 minutes and job completion within 24 hours.
After-market worry-free service
We are committed to providing after-market services,including trade-ins,overhauls,and recycling.we always stick to responsibility and mission of handing your concerns as best we can.Quality warranty
We grant our clients a twelve-month or 2000-hour warranty for any machine purchased from us.
