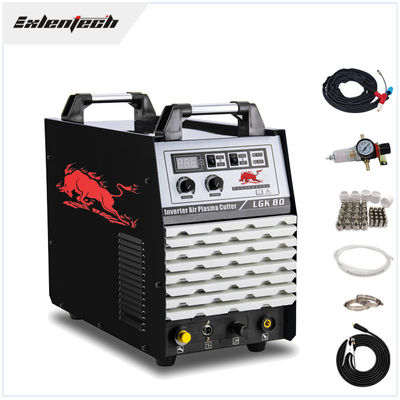

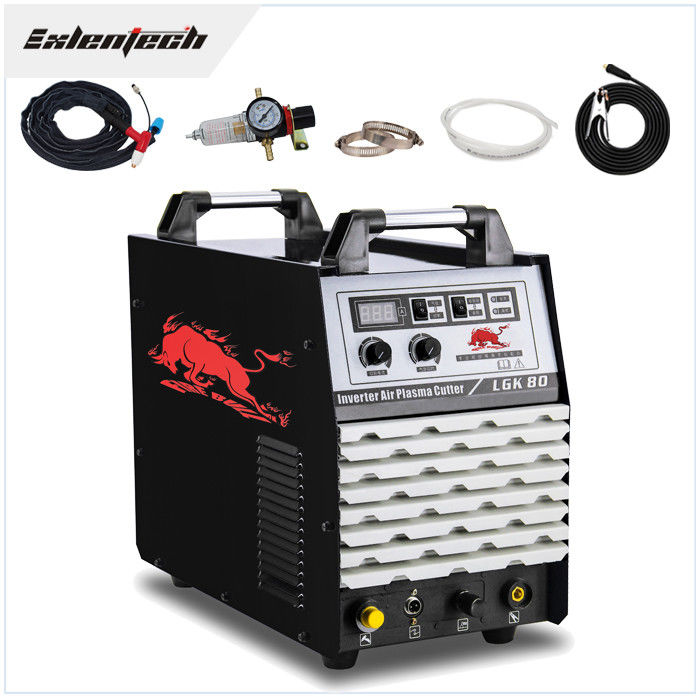

Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase

Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase
Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase

Large Image :  Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase

Product Details:
Place of Origin: CHINA
Brand Name: EXLENTECH
Certification: UL,CE,CCC
Model Number: CUT-80
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD200-USD300/PC
Packaging Details: Carton
Delivery Time: Small quantity:3 days; OEM:30days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 3000pcs/month

Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase

Description
Product Name: Portable Plasma Cutter OEM: Accept
Duty Cycle: 60% Cutting Thickness: 30 Mm
Voltage: 3 Phase 380V Spare Parts: 1%
High Light:

80A CNC Portable Plasma Cutter

,

80A Portable Plasma Cutter

,

80A three phase plasma cutter

Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase



Inverter Portable Plasma Cutting Machine CUT80 With Max Cutting Thinkness 30mm Suitable With CNC



Plasma Cutter Features:

1) Applicable to automatic cutting equipment.

2) Supports high frequency arc starting function with fast cutting speed, narrow seam, smooth incision, small deformation.
3) The maximum cutting thickness is 30mm.
4) Compact structure, portable, energy saving, easy for maintenance.
5) With internal lag air supply time function.
6) Intensive arc, high cutting speed, narrow and smooth kerf, continuous current regulation, little distortion for work-piece, safety and reliable for operation.
Model CUT-80
Input power Voltage Frequency(V,Hz): AC380(three phase)±15%,50/60
Rated input power capacity(KVA): 7.9
No-load voltage(V): 238
Output current range.(A): 20-60
Rated output voltage(V): 104
Duty cycle (%)(I25ºC): 60
No-load loss(w): 40
Arc-starting: HF
Efficiency(%): 85
Power factor (COSφ): 0.93
Insulation class: F
Weight(KG): 23
Overall dimension(mm): 500×263×365
Case protection degree: IP21S
Air compressor displacement(S): 0.25
Max cutting thickness(mm): 30

Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase 0
Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase 1




FAQ

1. Q: Are you a factory or trading company?

A: We're a MANUFACTURER.



2.Q: What certificates do you have ?

A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.



3.Q: Can you do OEM ?

A: Yes. We offer OEM/ODM service apart from our standards.



4. Q. Can I have a sample?

A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.



5. Q: Why choose us?

A:Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times without jet lag.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, or welder machines, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
