Product Details:
|
| Voltage: | 380V±15% Three Phase | Duty Cycle: | 100% |
|---|---|---|---|
| Color: | OEM | Output Current: | 1000 |
| Cable Length: | 15m | Weight: | 98KG |
| High Light: | 1000A Submerged Arc Welder,OEM 1000AMP Submerged Arc Welder,1000A sub arc machine |
||
1000A High Efficiency Submerged Arc Welder 60Hz Overvoltage Protection

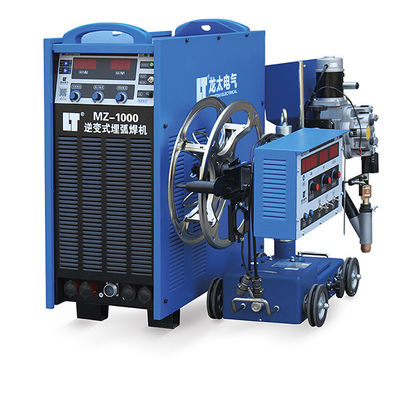

Longtai Brand Submerged Arc Welder SAW-1000 High Efficiency And Powerful Welding Function
1. Soft-switching inverter technology,Energy saving and reliable.
2. Independent dual control system, dual-station manual welding, carbon arc gouging.
3. Continuously adjustable arcing current and thrust current,stable welding,beautiful welding seam.
4. Our SAW can weld carbon steel,stainless steel,heat-resistant steel and composite steel plate.
5. Excellent welding performance, deep melting pool, high strength and good forming.
6. Widely used in automatic welding of various large carbon steel, alloy steel, stainless steel pressure vessels and metal structures
7. With fault display function, built-in protective circuits such as overheating, overcurrent, overvoltage, closure, etc., safe operation.
| Parameter/Model | MZ1000 |
| Input Vlotage(V) | AC380V±15% |
| Frequency(HZ) | 50/60 |
| Rated Input Current(A) | 84.3 |
| No-load Voltage(V) | 72 |
| Output Current Range(A) | 100-1000 |
| Rated Output Current(V) | 44 |
| Arc Force Current Range(A) | 0-100 |
| Duty Cycle(%) | 100 |
| No-load Loss(W) | 300 |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Housing Protection Grade | IP21S |
| Net Weight(kg) | 95KG |
| Packing Dimension(mm) | 800x455x785 |
Q: What's your factory MOQ?
A: MMA Welder MOQ 200 ,TIG/MIG/PLASMA CUT MOQ50,Sample available.
Q: Can i customize my own Logo/carton/machine's color?
A: We are OEM factory ,LOGO and color design based on 300pcs, carton design based on 500pcs.
Q: I order goods for own use ,how to do it?
A: We are factory no retail.if you want to place a trial order,depending on inventory .For a small amount of goods, the shipping fees is really expensive,to be borne by the buyer.
Q: How long your lead time?
A: Generally,Around 7 to 35 Days,depend on the order.
1. Digital control, MCU technology, automatic parameter saving, IGBT inverter technology.
2. High frequency to guarantee lighter and smaller welder with higher efficiency.
Do you have any concerns about the after-sales service of the welding machines you buy?
We have a complete set of after-sales service system to ensure that you have no worries about purchasing.
1. We provide quality assurance service for up to 12 months wanrranty. The effective time of service is calculated form the date of purchase or Boarding date of BL.
2. For each order, we will provide 1% free PCB or key components for your maintenance.
3. If you encounter problems which can't be fixed by yourself, we can provide technical support through video communication.
4. If bad quality problems occur, our salesmen and technicians will personally go to your company to inspect and repair, and offer solutions.
