Product Details:
|
| Voltage: | Single Phase 220V | Frequency: | 50/60Hz |
|---|---|---|---|
| Output Current: | 120A | Duty Cycle: | 60% |
| N.W: | 3 KG | Brand: | Customlized |
| High Light: | 220V 120Amps MMA Inverter Welder 120A,120Amp MMA Inverter Welder,120Amps inverter stick welder |
||

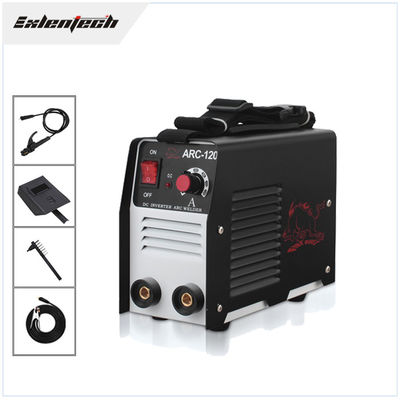

120Amp DC ARC MMA Inverter Welder Single Phase 220V For 1.6mm Electrode
MINI Inverter welder IGBT MMA120 DC ARC Welder Small portable suitable for 1.6mm electrode
inverter mma welder characteristics:

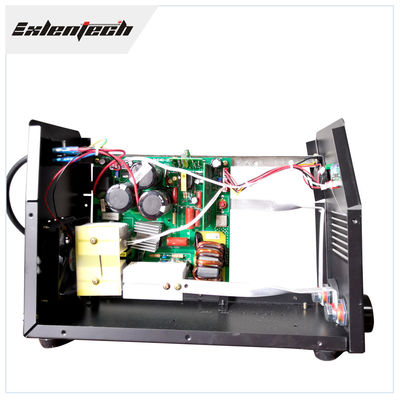

1. Single board IGBT technology, energy-efficient and low noise.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Safety protection against over current, over voltage and over heat.
4. Small and light, but still powerful.
5. Suitable for welding all kinds of acid and basic electrodes.
|
Model: |
ARC-120 |
|
Input power Voltage Frequency(V,Hz): |
AC220(single phase)±15%,50/60 |
|
Rated input power capacity(KVA) : |
7 |
|
No-load voltage(v): |
62 |
|
Output current range.(A): |
20-120 |
|
Rated output voltage(V): |
28 |
|
Duty cycle (%)(25ºC): |
35 |
|
No-load loss(w): |
40 |
|
Efficiency(%): |
85 |
|
Power factor (COSφ): |
0.93 |
|
Insulation class: |
F |
|
Weight(KG): |
5 |
|
Overall dimension(mm): |
315×115×200 |
|
Case protection degree: |
IP21S |
|
Suitable diameter of rod(mm): |
1.6-3.2 |
FAQ
Q: What's your factory MOQ?
A: MMA Welder MOQ 100 ,TIG/MIG/PLASMA CUT MOQ50,Sample available.
Q: Can i customize my own Logo/carton/machine's color?
A: We are OEM factory ,LOGO and color design based on 300pcs, carton design based on 500pcs.
Q: I order goods for own use ,how to do it?
A: We are factory no retail.if you want to place a trial order,depending on inventory .For a small amount of goods, the shipping fees is really expensive,to be borne by the buyer.
Q: How long your lead time?
A: Generally,Around 7 to 35 Days,depend on the order.
1. Digital control, MCU technology, automatic parameter saving, IGBT inverter technology.
2. High frequency to guarantee lighter and smaller welder with higher efficiency.
Q: Do you have products in stock?
A:Yes, we have.
Q: Do you have certificate?
A: Yes, we have certificates for different products.
Q: How does your factory do regarding the quality control?
A: Quality is priority, regarding welding&cutting products. Our factory has passed ISO 9001 with annual audit. Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels
Q: What’s your warranty terms?
A: We offer different warranty time to different products. Please contact us for detailed warranty terms. For quality problem, we always promise to send free accessories and send together with next order.
Q: What about your company? Why choose you?
During the manufacturing and before shipment, we will go to the workshop or the co-operated factories to check, to make sure that everything is fine. We work just as your own office in China! We are your eyes.
Benefit you get:
A. Stable quality ——Coming from good materials and production B. Competitive price——Not cheapest but the competitive C. Good service——Satisfactory service before and after sale
