Product Details:
|
| Name: | MIG Welding Machine | Input Voltage: | 380v Or 220V |
|---|---|---|---|
| Output Current: | 250/300A | Wire Feeder: | Inbuilt Wire Feeder |
| Machine Color: | OEM | Duty Cycle: | 60% |
| High Light: | 220V 315A Mig Mag Welder,ODM Mig Mag Welder,315A 3 Phase Welding Machine |
||

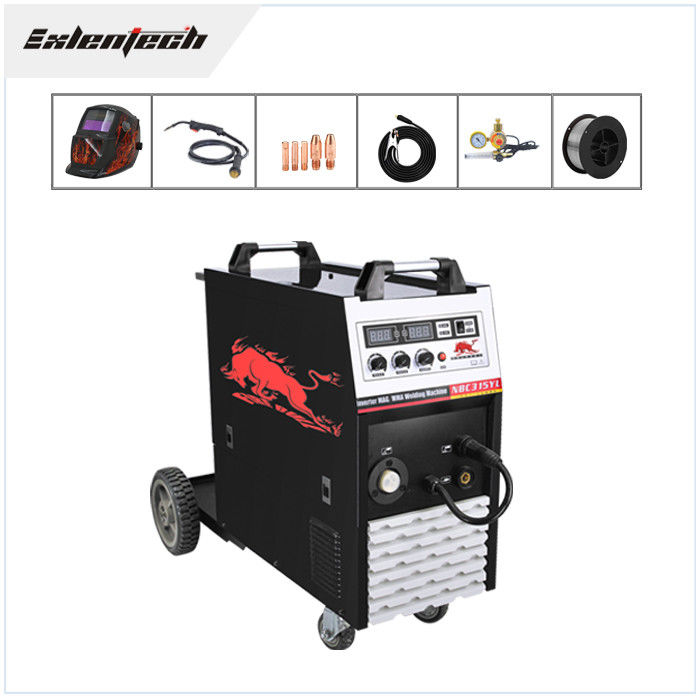

ODM 315A Mig Mag Welder 3 Phase Welding Machine With Trolley
DC Inverter Welder MIG 250 Mag Welding Machine With Trolley Suit For 0.8 And 1.0mm 17kg Wire Roll
MIG welding machine Product Characteristics:
1. Synergic adjustment control, friendly operation interface.
2. Wire diameter and gas are optional on panel.
3. Multi-functions: MIG, Pulse MIG, Double Pulse MIG, MMA.
4. No breakdown and deformation for thin sheet welding at small current 20Amp.
5. Main material: Fe, AlMg, AlSi, CrNi, Cu.
6. Portable integrated wire feeder design.
7. Suitable for medium and low carbon steel,low alloy steel and stainless steel welding.
| Model: | MIG-315 |
| Input power Voltage Frequency(V,Hz): | AC220V/380V±15%,50/60 |
| Rated input power capacity(KVA) : | 8.3 |
| Rated output current(A): | 250 |
| Rated output voltage(V): | 26.5 |
| Duty cycle (%): | 60 |
| Output current range.(A): | 50-250 |
| Output voltage range(V): | 16.5-26.5 |
| Insulation class: | F |
| Case protection degree: | IP21S |
| Overall dimension(mm): |
655×295×610 |
| Weight(KG): | 21 |
| Efficiency(%): | 85 |
| Feeding speed(m/min): | 2.5-13 |
| Type of wire feeder: | Build-in |
| Diameter of the wire feeder(mm): | 270 |
| Post-flow time(S): | 1±0.5 |
| Power factor (COSφ): | 0.93 |
| Earth wire(mm2): | 6 |
| Welding thickness(mm): | >0.8 |
| Diameter of welding wire(mm): | 0.8/1.0 |
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(35.00%),Mid East(30.00%),South Asia(20.00%),South America(15.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
ARC welding machine,MIG Welding Machine,TIG Welding Machine,MMA Welding Machine,Plasma Cutting Machine
4. Why should you buy from us not from other suppliers?
Our project has 20 years of design and development experience, and I have more than 10 years of export experience. We use high-quality raw materials, stable suppliers. We have professional testing equipment and inspectors.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
Q:WHY CHOOSE US?
1.100% local people,more then 5years experience on assambling.
2.Trial order 100% inspection on finished product,follow orders by 10-20% quality inspection on finished product.
3.Competitive price under high quality warranty.
Q:WHAT ABOUT OEM/ODM AND DESIGN OF THE PRODUCT?
We have more then 30people for researching new technology on welding machines,helping customers to do ODM/OEM, and can help customer to design and modify the product.
Q:Can you supply the sample?Q:Can you supply the sample?
We can supply the sample to you,but we should charge the sample fee.The sample fee can be returned after your order comfirmed.
