Product Details:
|
| Name: | Steel Plasma Cutting Machine | Voltage: | 3 Phase 380V±15% |
|---|---|---|---|
| Protect Gas: | Compressored Air | Output Current: | 100Amps |
| Frequency: | 50/60Hz | Cutting Thickness: | 35mm |
| High Light: | 100A Portable Plasma Cutter,380V Portable Plasma Cutter,100A Steel Plasma Cutting Machine |
||

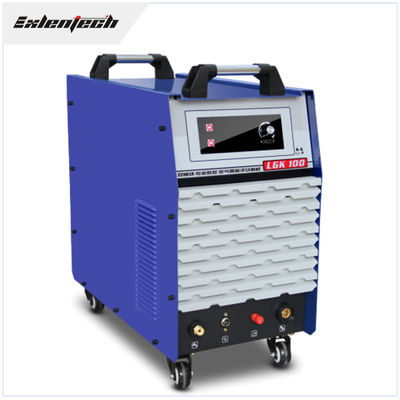

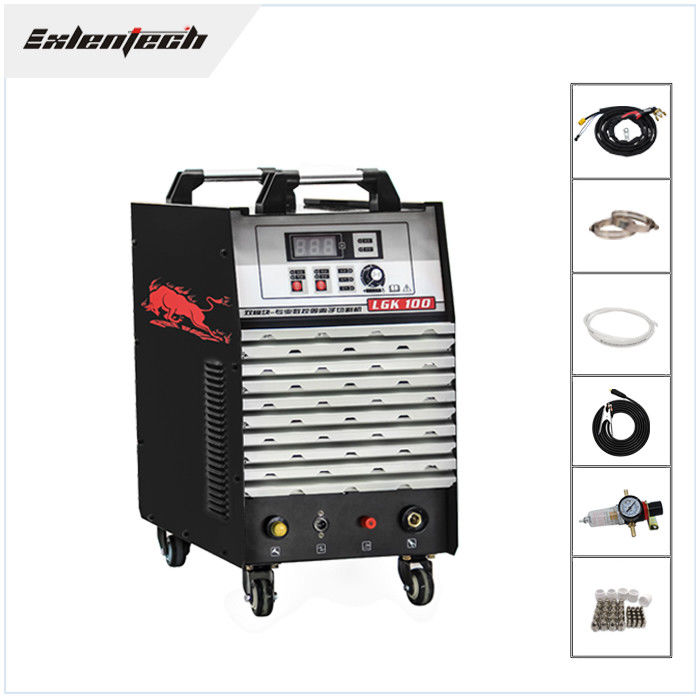

100A Portable Plasma Cutter 380V Steel Plasma Cutting Machine
Portable Manual Plasma Cutter CUT 100 Made In China Steel Plasma Cutting Machine
Plasma cutting machine Characteristics:
1. Use compressed air as cutting gas source, cost-effective.
2. Air regulator and digital meter in the front panel. Easier operation for adjusting air pressure and cutting current.
3. Narrow cutting seams, smooth cutting performance and less deformation.
4. Automatic over-voltage, over-current and over-heat protection.
5. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
| Model | CUT-100 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA): | 15 |
| No-load voltage(V): | 268 |
| Output current range.(A): | 20-100 |
| Rated output voltage(V): | 120 |
| Duty cycle (%)(25ºC): | 60 |
| No-load loss(w): | 60 |
| Arc-starting: | HF |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 38 |
| Overall dimension(mm): | 562×303×467 |
| Case protection degree: | IP21S |
| Air compressor displacement(S): | 0.36 |
| Max cutting thickness(mm): | 40 |
1. MOQ:
Generally if you choose the different products, our minimum order qty. also will be different and if with stock, 1-5 sets can be acceptable as well.
2. Payment:
Actually, TT payment would be preferred: Normally we choose T/T, usually is 30% deposit and the balance before shipment L/C, Western Union and paypal is acceptable.
3. Delivery time:
For OEM service,The goods need around 30 days to be made after receive deposit.
4.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for reference.
5. Why choose us?
a. We are China Leading manufacturer. We are confident that with our experience in welding machine and air plasma cutter etc. Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. For large order, engineer can be sent to your country for on-site maintenance instructions.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on trade manager, anyway we will try our best to help with the inquiry.
6. First time to use this kind of machine
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail /phone /trade manager online service.
7. If machine have any problem after received
Free parts can be sent to you in machine warranty period.
Do you have any concerns about the after-sales service of the welding machines you buy?
We have a complete set of after-sales service system to ensure that you have no worries about purchasing.
1. We provide quality assurance service for up to 12 months wanrranty. The effective time of service is calculated form the date of purchase or Boarding date of BL.
2. For each order, we will provide 1% free PCB or key components for your maintenance.
3. If you encounter problems which can't be fixed by yourself, we can provide technical support through video communication.
4. If bad quality problems occur, our salesmen and technicians will personally go to your company to inspect and repair, and offer solutions.
